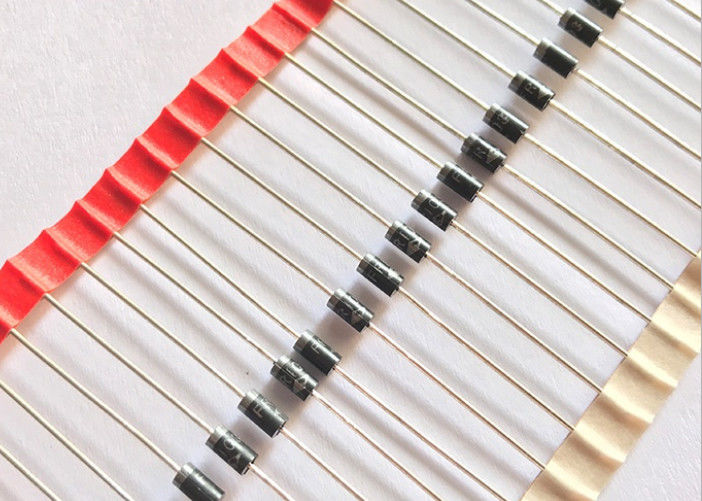

Name: RoHS Ultra Fast Recovery Rectifier Diode Low Reverse Leakage
Brand: OTOMO
SKU: FR101 THRU FR107
Rating: 4.6 (105 reviews)

Home > products > Fast Recovery Rectifier Diode >

RoHS Ultra Fast Recovery Rectifier Diode Low Reverse Leakage

RoHS Fast Recovery Rectifier Diode

2.3kg Fast Recovery Rectifier Diode

Ultra Fast Rectifier Diode Low reverse leakage

Place of Origin:

ShenZhen China

Brand Name:

OTOMO

Certification:

RoHS、SGS

Model Number:

FR101 THRU FR107

Request A Quote

RoHS Ultra Fast Recovery Rectifier Diode Low Reverse Leakage

Product Details

Type:

SWITCHING DIODESOD

FEATURE:

Low Reverse Leakage

Terminals:

Plated Axial Leads, Solderable Per MIL-STD-750,

Polarity:

Color Band Denotes Cathode End

Product ID:

MMBD4148A/SE/CC/CA

Case:

JEDEC DO-41 Molded Plastic Body

Payment & Shipping Terms

Minimum Order Quantity

1000-2000 PCS

Price

Negotiated

Packaging Details

Boxed

Delivery Time

1 - 2 Weeks

Payment Terms

L/C T/T Western Union

Supply Ability

18,000,000PCS / Per Day

RELATED PRODUCTS

86--15112670997

kf@maoyt.com

Contact Now

Product Description

FR101 THRU FR107 FAST RECOVERY RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Amper

FEATURE

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Fast switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

250 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-41 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.012 ounce, 0.33 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Note:

1. Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3. Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounte

RATINGS AND CHARACTERISTIC CURVES 1N4942 THRU 1N4948
