Name: Fast Recovery Dual Channel Mosfet 250 C/10 Seconds At Terminals
Brand: OTOMO
SKU: RS3A THRU RS3M
Rating: 4.5 (184 reviews)

Home > products > Dual Channel Mosfet >

Fast Recovery Dual Channel Mosfet 250 C/10 Seconds At Terminals

Fast Recovery Dual Channel Mosfet

SGS Dual Channel Mosfet

0.003ounce Dual Channel Mosfet

Place of Origin:

ShenZhen China

Brand Name:

OTOMO

Certification:

RoHS、SGS

Model Number:

RS3A THRU RS3M

Request A Quote

Fast Recovery Dual Channel Mosfet 250 C/10 Seconds At Terminals

Product Details

Type:

Fast Recovery Rectifier Diode

FEATURE:

250 C/10 Seconds At Terminals

Terminals:

Plated Axial Leads, Solderable Per MIL-STD-750,

Weight:

0.003ounce,0.093grams

Product ID:

RS3A THRU RS3M

Case:

JEDEC DO-41 Molded Plastic Body

Payment & Shipping Terms

Minimum Order Quantity

1000-2000 PCS

Price

Negotiated

Packaging Details

Boxed

Delivery Time

1 - 2 Weeks

Payment Terms

L/C T/T Western Union

Supply Ability

18,000,000PCS / Per Day

RELATED PRODUCTS

86--15112670997

kf@maoyt.com

Contact Now

Product Description

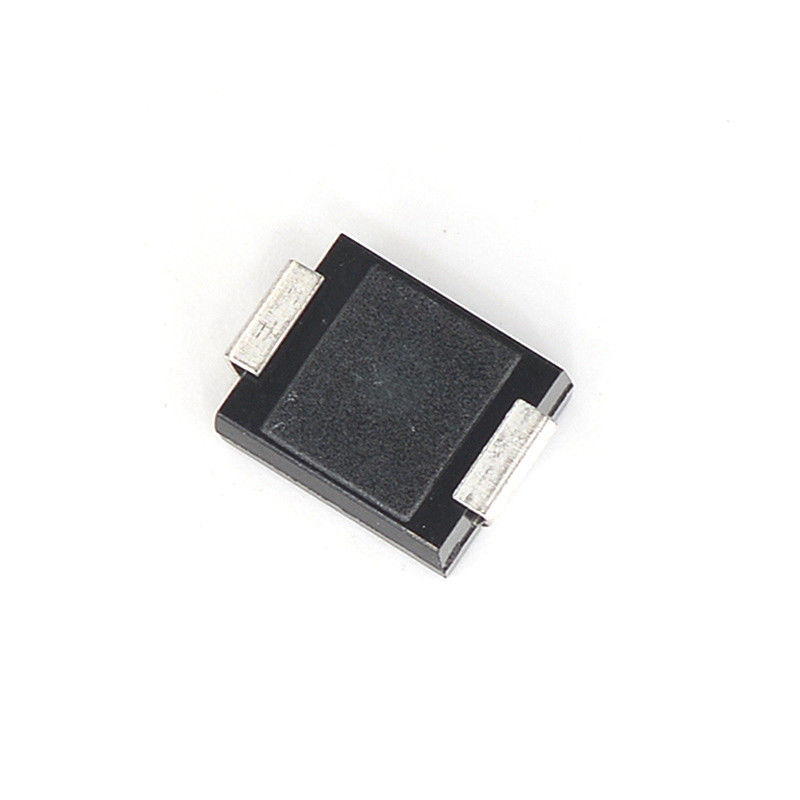

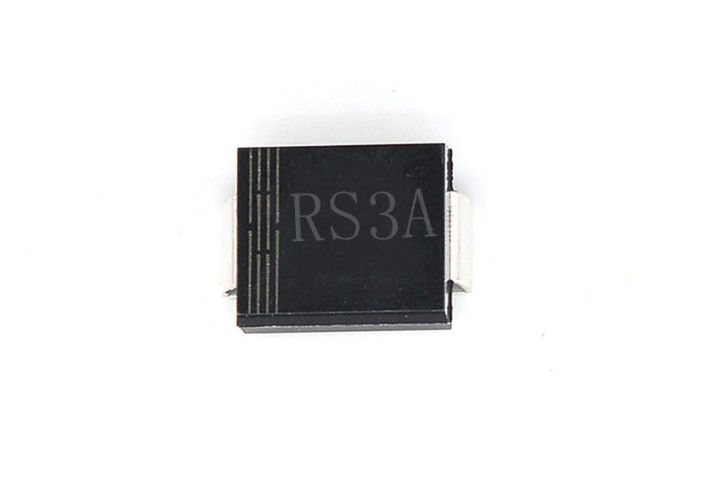

RS3A THRU RS3M SURFACE MOUNT FASTRE COVERY RECTIFIER

FEATURE

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

For surface mounted applications

Low reverse leakage

Built-in strain relief,ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed:

250 C/10 seconds at terminals

Glass passivated chip junction

MECHANICAL DATA

Case : JEDEC DO-214AC molded plastic body over passivated chip

Terminals : Solder plated, solderable per MIL-STD-750,

Method 2026

Polarity : Color band denotes cathode end

Mounting Position : Any

Weight :0.003ounce,0.093grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Note:

1. Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3. Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounte
