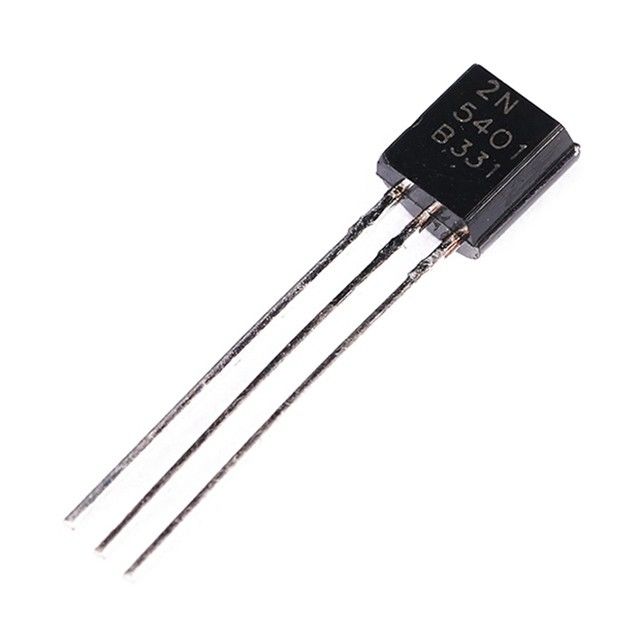

TO-92 Plastic-Encapsulate Transistors 2N5401 TRANSISTOR (PNP)
Ÿ Switching and Amplification in High Voltage
Ÿ Applications such as Telephony
Ÿ Low Current
Ÿ High Voltage
ORDERING INFORMATION
| Part Number | Package | Packing Method | Pack Quantity |
| 2N5401 | TO-92 | Bulk | 1000pcs/Bag |
| 2N5401-TA | TO-92 | Tape | 2000pcs/Box |
MAXIMUM RATINGS (Ta =25 Š unless otherwise noted)
| Symbol | Parameter | Value | Unit |
| VCBO | Collector-Base Voltage | -160 | V |
| VCEO | Collector-Emitter Voltage | -150 | V |
| VEBO | Emitter-Base Voltage | -5 | V |
| IC | Collector Current | -0.6 | A |
| PC | Collector Power Dissipation | 625 | mW |
| R0 JA | Thermal Resistance From Junction To Ambient | 200 | Š / W |
| Tj | Junction Temperature | 150 | Š |
| Tstg | Storage Temperature | -55~+150 | Š |
Ta=25 Š unless otherwise specified
| Parameter | Symbol | Test conditions | Min | Typ | Max | Unit |
| Collector-base breakdown voltage | V(BR)CBO | IC= -0.1mA,IE=0 | -160 | V | ||
| Collector-emitter breakdown voltage | V(BR)CEO | IC=-1mA,IB=0 | -150 | V | ||
| Emitter-base breakdown voltage | V(BR)EBO | IE=-0.01mA,IC=0 | -5 | V | ||
| Collector cut-off current | ICBO | VCB=-120V,IE=0 | -50 | nA | ||
| Emitter cut-off current | IEBO | VEB=-3V,IC=0 | -50 | nA | ||
|
DC current gain |
hFE(1) | VCE=-5V, IC=-1mA | 80 | |||
| hFE(2) | VCE=-5V, IC=-10mA | 100 | 300 | |||
| hFE(3) | VCE=-5V, IC=-50mA | 50 | ||||
| Collector-emitter saturation voltage | VCE(sat) | IC=-50mA,IB=-5mA | -0.5 | V | ||
| Base-emitter saturation voltage | VBE(sat) | IC=-50mA,IB=-5mA | -1 | V | ||
| Transition frequency | fT | VCE=-5V,IC=-10mA, f =30MHz | 100 | 300 | MHz |
| RANK | A | B | C |
| RANGE | 100-150 | 150-200 | 200-300 |
Typical Characteristics
Package Outline Dimensions
| Symbol | Dimensions In Millimeters | Dimensions In Inches | ||
| Min | Max | Min | Max | |
| A | 3.300 | 3.700 | 0.130 | 0.146 |
| A1 | 1.100 | 1.400 | 0.043 | 0.055 |
| b | 0.380 | 0.550 | 0.015 | 0.022 |
| c | 0.360 | 0.510 | 0.014 | 0.020 |
| D | 4.300 | 4.700 | 0.169 | 0.185 |
| D1 | 3.430 | 0.135 | ||
| E | 4.300 | 4.700 | 0.169 | 0.185 |
| e | 1.270 TYP | 0.050 TYP | ||
| e1 | 2.440 | 2.640 | 0.096 | 0.104 |
| L | 14.100 | 14.500 | 0.555 | 0.571 |
| 0 | 1.600 | 0.063 | ||
| h | 0.000 | 0.380 | 0.000 | 0.015 |
TO-92 7DSH DQG 5HHO
