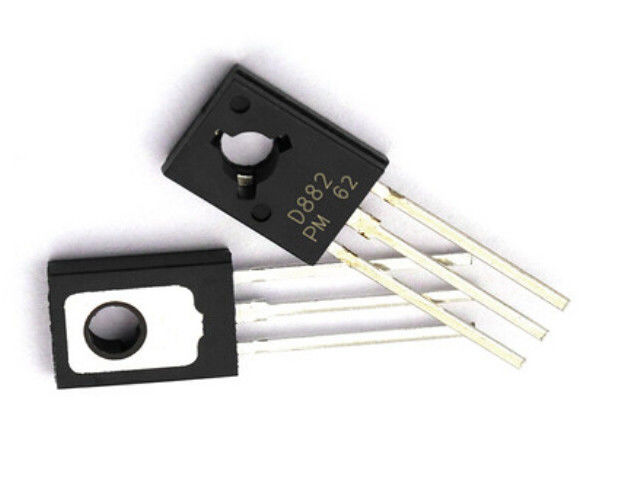

TO-126 Plastic-Encapsulate Transistors D882 TRANSISTOR (NPN)
Power Dissipation
MARKING
D882=Device code
Solid dot = Green molding compound device, if none, the normal device XX=Code
ORDERING INFORMATION
| Part Number | Package | Packing Method | Pack Quantity |
| D882 | TO-126 | Bulk | 200pcs/Bag |
| D882-TU | TO-126 | Tube | 60pcs/Tube |
MAXIMUM RATINGS (Ta =25 Š unless otherwise noted)
| Symbol | Parameter | Value | Unit |
| VCBO | Collector-Base Voltage | 40 | V |
| VCEO | Collector-Emitter Voltage | 30 | V |
| VEBO | Emitter-Base Voltage | 6 | V |
| IC | Collector Current -Continuous | 3 | A |
| PC | Collector Power Dissipation | 1.25 | W |
| TJ | Junction Temperature | 150 | ℃ |
| Tstg | Storage Temperature | -55-150 | ℃ |
Ta=25 Š unless otherwise specified
| Parameter | Symbol | Test conditions | Min | Typ | Max | Unit |
| Collector-base breakdown voltage | V(BR)CBO | IC = 100μA, IE=0 | 40 | V | ||
| Collector-emitter breakdown voltage | V(BR)CEO | IC = 10mA, IB=0 | 30 | V | ||
| Emitter-base breakdown voltage | V(BR)EBO | IE= 100μA, IC=0 | 6 | V | ||
| Collector cut-off current | ICBO | VCB= 40 V, IE=0 | 1 | µA | ||
| Collector cut-off current | ICEO | VCE= 30 V, IB=0 | 10 | µA | ||
| Emitter cut-off current | IEBO | VEB= 6 V, IC=0 | 1 | µA | ||
| DC current gain | hFE | VCE= 2 V, IC= 1A | 60 | 400 | ||
| Collector-emitter saturation voltage | VCE (sat) | IC= 2A, IB= 0.2 A | 0.5 | V | ||
| Base-emitter saturation voltage | VBE (sat) | IC= 2A, IB= 0.2 A | 1.5 | V | ||
|
Transition frequency |
fT |
VCE= 5V, IC=0.1A f =10MHz |
90 |
MHz |
| Rank | R | O | Y | GR |
| Range | 60-120 | 100-200 | 160-320 | 200-400 |
Typical Characteristics
Package Outline Dimensions
| Symbol | Dimensions In Millimeters | Dimensions In Inches | ||
| Min | Max | Min | Max | |
| A | 2.500 | 2.900 | 0.098 | 0.114 |
| A1 | 1.100 | 1.500 | 0.043 | 0.059 |
| b | 0.660 | 0.860 | 0.026 | 0.034 |
| b1 | 1.170 | 1.370 | 0.046 | 0.054 |
| c | 0.450 | 0.600 | 0.018 | 0.024 |
| D | 7.400 | 7.800 | 0.291 | 0.307 |
| E | 10.600 | 11.000 | 0.417 | 0.433 |
| e | 2.290 TYP | 0.090 TYP | ||
| e1 | 4.480 | 4.680 | 0.176 | 0.184 |
| h | 0.000 | 0.300 | 0.000 | 0.012 |
| L | 15.300 | 15.700 | 0.602 | 0.618 |
| L1 | 2.100 | 2.300 | 0.083 | 0.091 |
| P | 3.900 | 4.100 | 0.154 | 0.161 |
| Φ | 3.000 | 3.200 | 0.118 | 0.126 |
