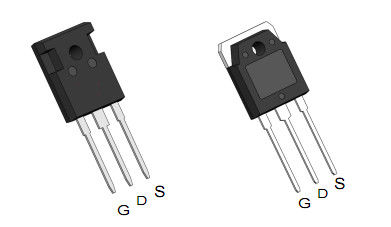

Low Gate Charge Mosfet Power Transistor For Inverter Systems Management
What is a Mosfet Power Transistor ?
A power MOSFET is a special type of metal oxide semiconductor field effect transistor. It is specially designed to handle high-level powers. The power MOSFET’s are constructed in a V configuration. Therefore, it is also called as V-MOSFET, VFET. The symbols of N- channel & P- channel power MOSFET are shown in the below figure.
Mosfet Power Transistor Description
60V/230A
R DS(ON) = m(typ.) @ V GS =10V
Reliableand Rugged
Lead FreeandGreenDevicesAvailable
(RoHSCompliant)
Mosfet Power Transistor Applications
Switching application
Power Management for Inverter Systems.
Ordering and Marking Information
Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate Termi-
Nation finish;which are fully compliant with RoHS. HUAYI lead-free products meet or exceed the lead-Free require-
ments of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature. HUAYI defines
“Green” to mean lead-free (RoHS compliant) and halogen free (Br or Cl does not exceed 900ppm by weight in
homogeneous material and total of Br and Cl does not exceed 1500ppm by weight).
HUAYI reserves the right to make changes, corrections, enhancements, modifications, and improvements to this pr-
oduct and/or to this document at any time without notice.
Absolute Maximum Ratings
Typical Operating Characteristics
